      New LS6000M High Power Fiber Laser CNC Controller for Laser Cutter

      Updata Time:2020-05-27 13:59



      Fieldbus type of laser cutting control system, Weihong LS6000M is based on the new platform of PHOENIX with better portability and compatibility, powerful and practical secondary development, which offers great support to the upgrade of high power laser cutting machines.

      一、Brand new human-computer interaction


      Optimized operation system
      Well-arranged function keys
      Efficient debugging and processing
      ☆Machining process:
      1 Machining mode selection: flexible machining/batch machining
      2 Program Preparation: Programed in system/file import directly
      3 Confirm the processing: new process/ import from library
      4 Start processing: check the processing track and monitor the peripheral equipment
      5 Generate machining reports/sheets

      >>> Flexible machining mode




      With same way of operation as that of LS3000 control system, LS6000M model effectively reduces the learning cost and files can be processed directly after drawing in the graphics section.

      >>> Batch processing mode


      Support multi-file processing, with functions of processing according to the list, graphics preview, graphics drawing, and file modification.


      Process programing: Modify the files in the processing list in real time.

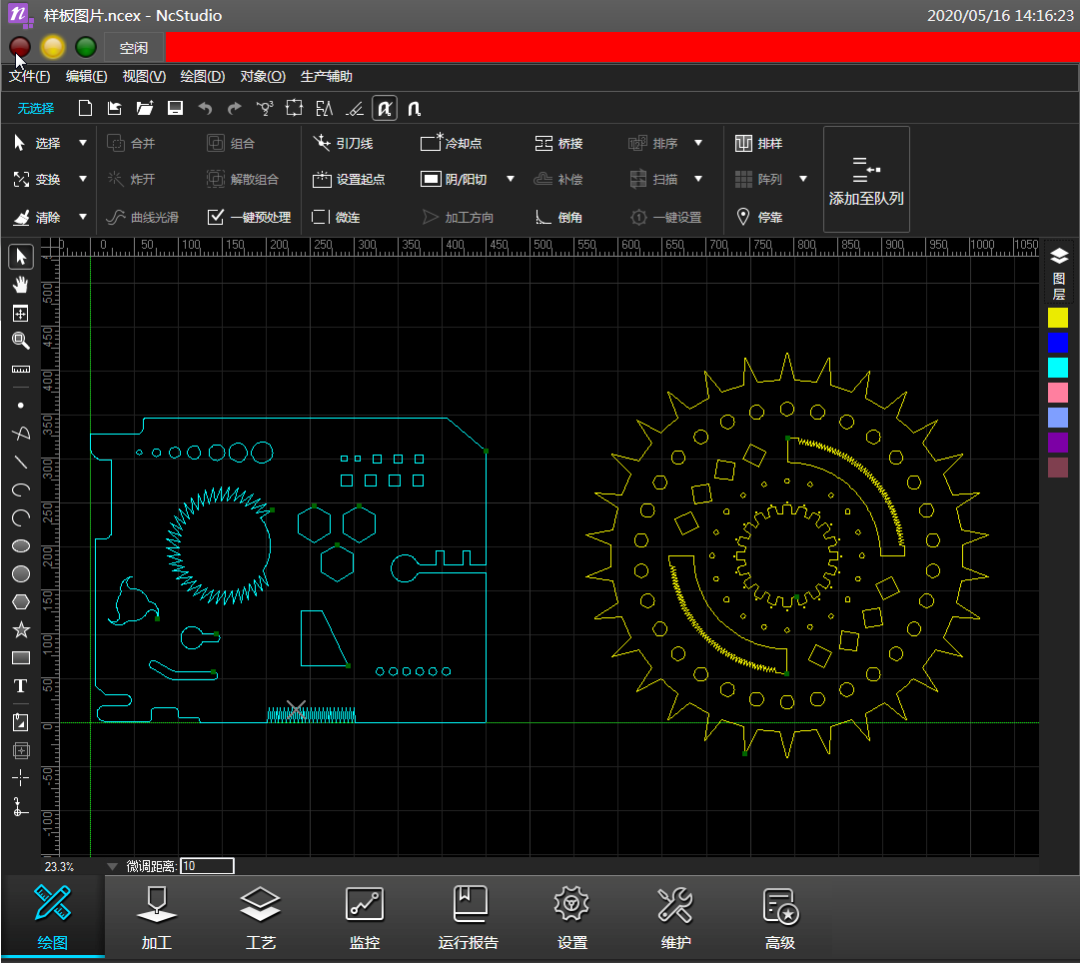

      Graphics Drawing: Select one file from processing list and click Graphics Drawing to quickly modify the CAM and graphic properties of the processing file.

      二、Powerful function, release the potential of machine tool

      1 Management of Processing Library



      Better management of processing files
      Processing file is editable and can be saved.
      Existing files can be screened and saved as a backup.

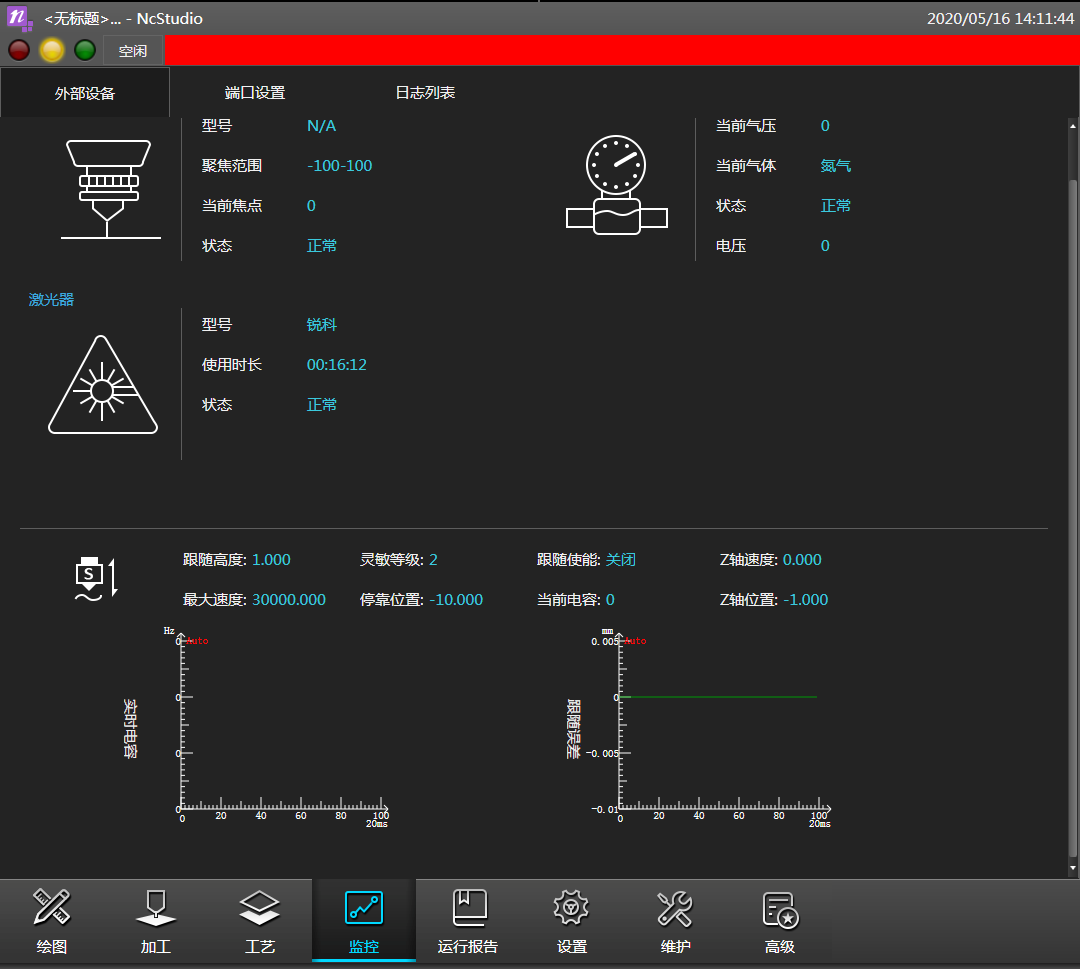

      2 Real-time Monitoring of Machine Tool Accessories

      Real - time monitoring of cutting head, auxiliary gas, laser, follow-up control
      Modules for monitoring can be added according to subsequent requirements.

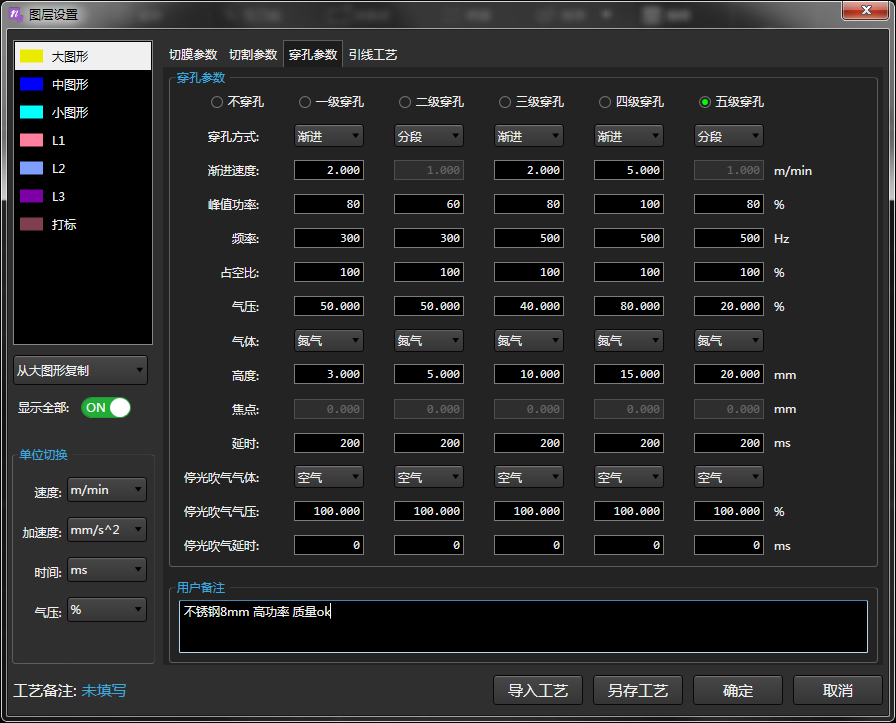

      3 Five-segment Piercing
      By using five-segment of piercing, it effectively ensures the performance of thick sheet cutting with high power.

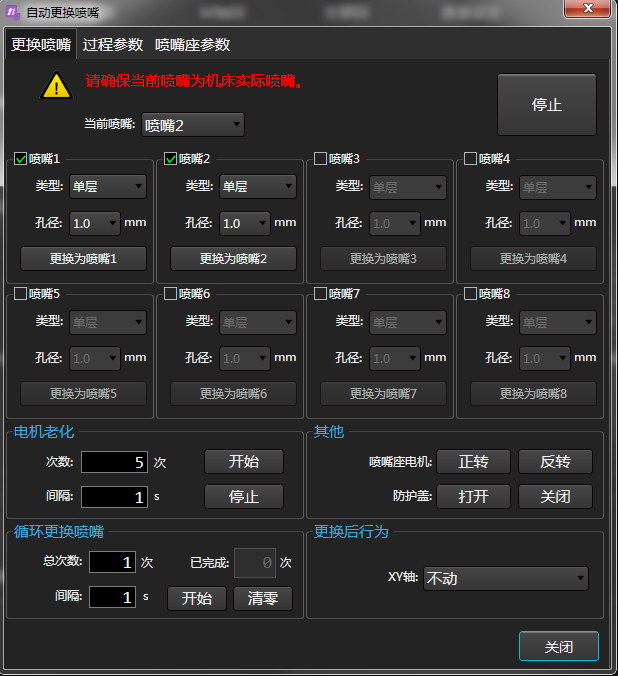

      4 Automatic nozzle replacement
      For different material’s processing, it supports automatic nozzle replacement.

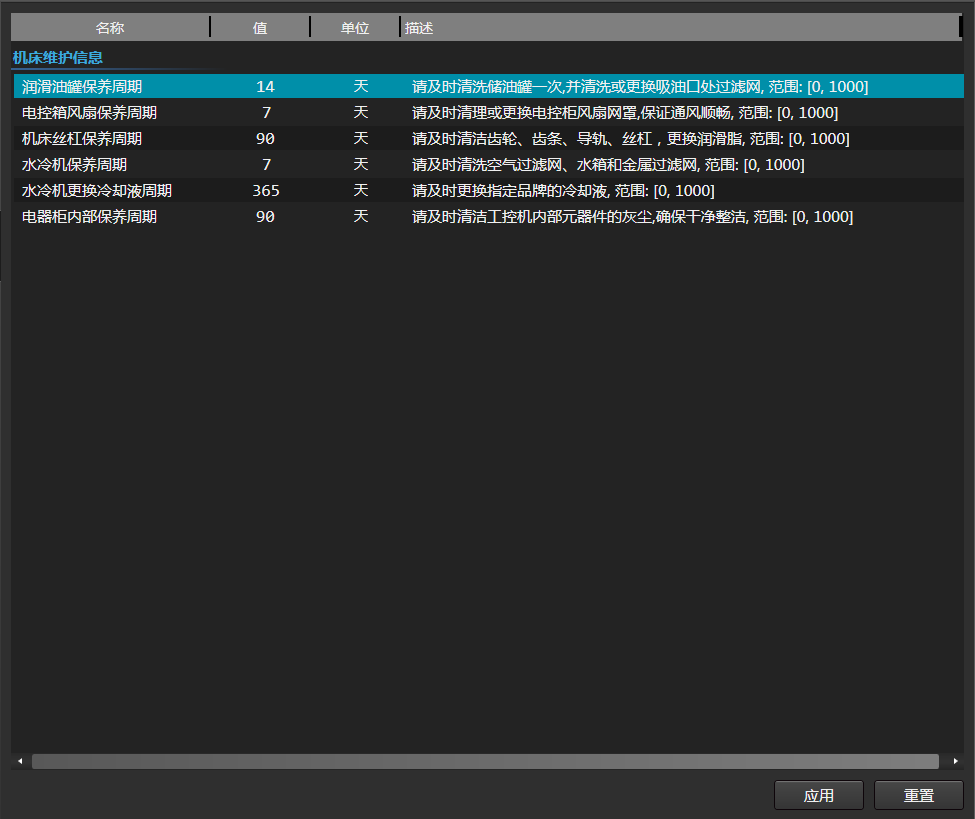

      5 Reminder Setting for Machine Maintenance
      Users can set reminder time for their own machines’ maintenance
      Based on the reminder time, machines can be maintained regularly

      6 Weihong Intelligent Laser Cutting Head
      Equipped with Weihong SL-060A series laser cutting head
      Automatic focus, multiple lens protection, compact structure
      Support EtherCAT bus
      In addition, it is equipped with EX37A board
      To match with ProCutter2.0 cutting head


      One-click Cutting, Parts Library, etc.
      More Practical Functions Await Your Discovery.
      Weihong LS6000M, Fieldbus Type of CNC Controller
      Best Choice for High-power Laser Cutting
