      NK300CX






      產品描述圖1
      產品描述圖2
      產品描述圖3
      產品描述圖3
      產品描述圖3

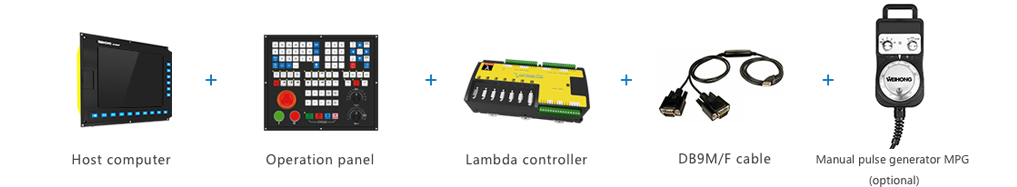

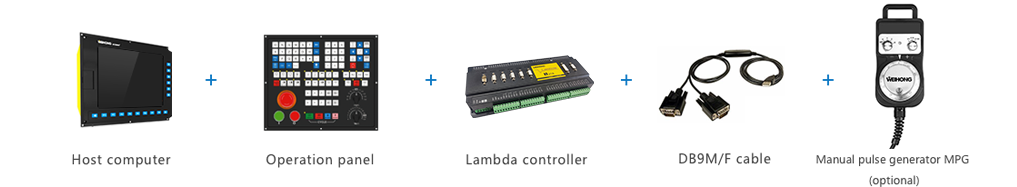

      • Product Configuration

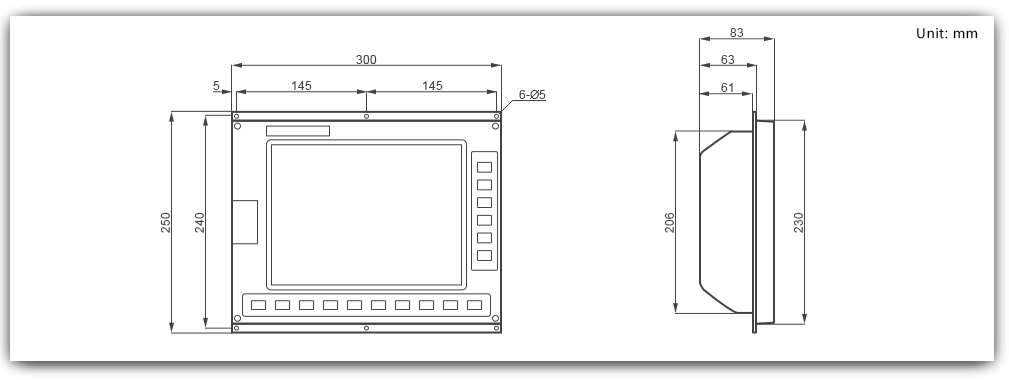

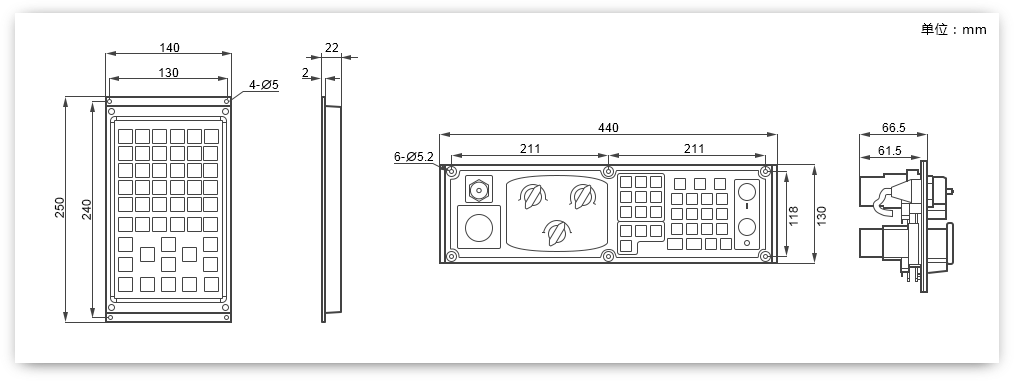

      Mounting Dimension

      Specification parameters

      CNC Specifications

      Number of Axes Supported
      3-5 axes

      Hardware Specifications

      CPU
      Dual cores

      CPU Clock Speed
      2.17GHz

      RAM
      2GB

      Storage
      60GB

      Monitor Dimension
      10.4

      I/O
      800×600(SVGA)

      I/O
      Standard: 28/8; Extended terminal board: 8/8(non-cascade connection),10/10 (cascade connection)

      Performance Indicator
      The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
      Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
      The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

      Spindle

      Analog Voltage Output
      0-10V

      Tool Management

      Tool Magazine
      Linear tool magazine,Disk-type tool magazine

      Tool Measurement Mode
      Auto measurement,Manual measurement

      Tool Measurement Type
      Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

      Interpolation Programming

      Circular Interpolation
      Three axes linkage
      Three axes linkage

      Compensation
      Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

      Toolpath Program

      Supported File Format
      *.g;*.nc;*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt

      Communication

      Internet(Ethernet)
      LAN communication, Front USB interface, Two-way transmission between the system and PC

      Operations

      WCS Setting
      Supporting WCS G54-G59 and 120 extended WCSs

      Processing Technology
      Array function, Mirror&rotate, Multi-layer machining, Cycle machining

      Software Language

      Chinese,English

      High-speed High-precision Optimization

      Interpolation Algorithms
      S-type,LEP and Acceleration T-type algorithms

      Reliability & Safety

      CNC Software Alarm
      Alarms of program error, operation error, over-travel error, PLC error and IO communication error

      Widely applied……

      Successful Cases



      High-end mold milling machine
      4 axes router machine
      Drilling and tapping center
      Drilling and tapping center
      Woodworking machining center
