      Mini Multi-Axis Servo Drive






      產品描述圖1
      產品描述圖2
      產品描述圖3
      產品描述圖4

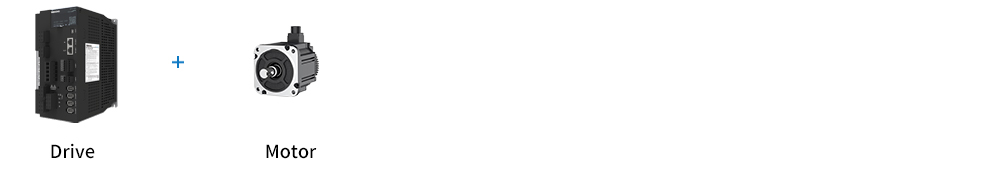

      Product Configuration

      Mounting Demension

      Mounting Dimension

      Basic Specification

      Main Circuit Power Supply
      Single/three-phase 200V~240V +10%- 15%,50/60Hz

      Control Circuit Power Supply
      Single-phase 200V~240V +10%- 15%,50/60Hz

      Control Mode
      SVPWM、vector control

      Encoder Feedback
      17/20/23/24/25 bits absolute or incremental encoder

      Command Mode
      EtherCAT high-speed bus

      Communication Function
      Connect with computer (which has IMOTION software installed) via USB

      Regenerative Braking Resistor
      Built-in or external

      Dynamic Braking
      Support

      Control Mode
      Profile position mode (PP)、 Cycle synchronous position mode (CSP)、 Homing mode (HM)
      Profile velocity mode (PV)、 Cycle synchronous velocity mode (CSV)
      Profile torque mode (PT)、 Cycle synchronous torque mode (CST)

      Protect

      Hardware Protection
      Overvoltage、undervoltage、overcurrent、brake resistor overload、 drive overheating、encoder abnormality、etc

      Software Protection
      Memory failure、initialization failure、I/O allocation error、overspeed、overload、brake resistor overload、 position deviation excess、etc

      Fault Record
      Can record 14 faults and the latest 3 fault information

      Widely applied in…

      Successful Cases



      Router machine
      Mould machine
      Glass edge grinding machine
      Robot arms
      Embroidery machine
