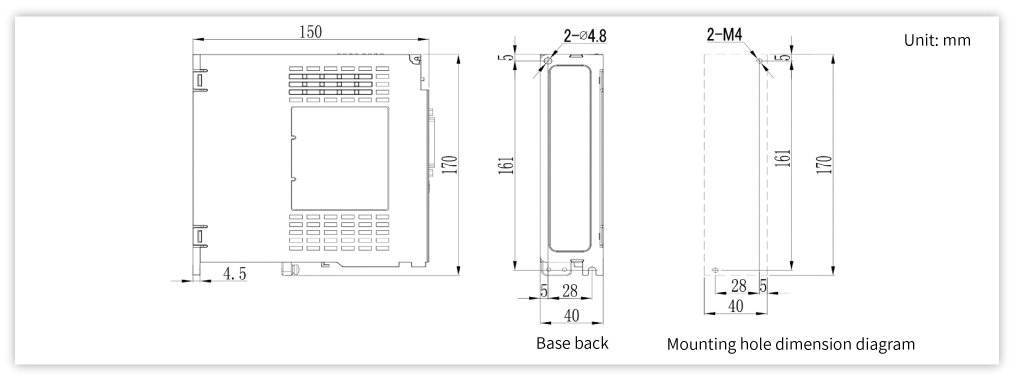

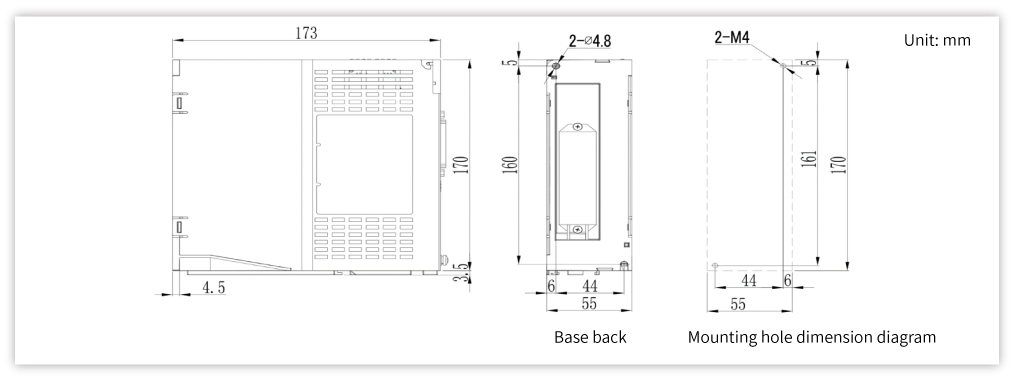

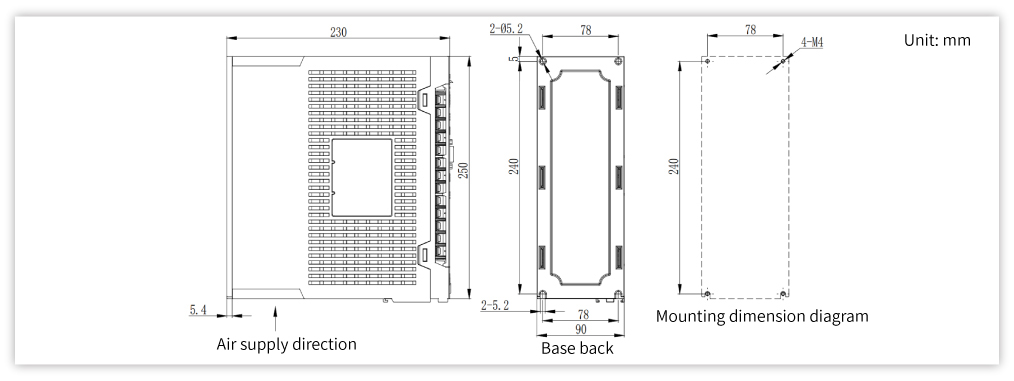

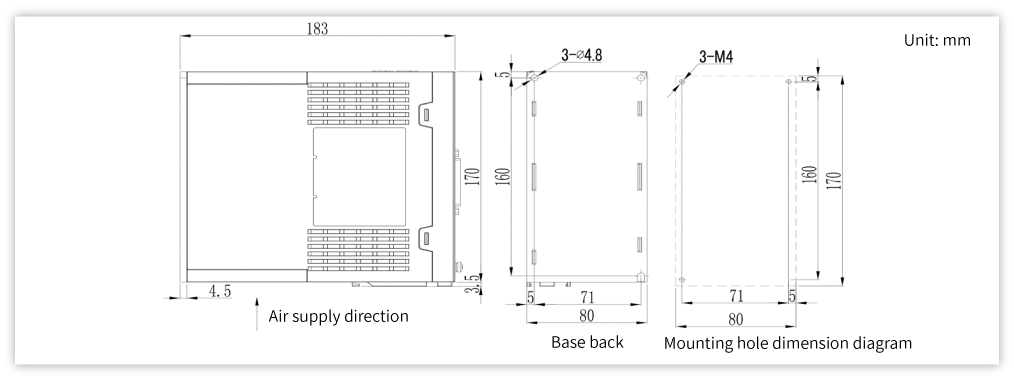

Mounting Demension
Main Circuit Power Supply
WSD-B1-02B、WSD-B1-04B：Single-phase 200V~240V +10%- 15%，50/60HZ
WSD-B1-08B、WSD-B1-10B：Single/three-phase 200V~240V +10%- 15%，50/60HZ
WSD-B1-15B：Three-phase 200V~240V +10%- 15%，50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C：Three-phase 380V~440V +10%- 15%，50/60HZ
Control Circuit Power Supply
WSD-B1-02B、WSD-B1-04B、WSD-B1-08B、WSD-B1-10B：None
WSD-B1-15B：Single-phase 200V~240V +10%-15%，50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C：Single-phase 380V~440V +10%- 15%，50/60HZ
Control Mode
SVPWM
Encoder Support
17 bits/20 bits/23 bits/24 bits/25 bits
Communication Method with PC
USB Communication
Panel Operator
5 buttons, 5 bits LED display
Regenerative resistor
200W、400W：No built-in regenerative resistor
750W、1.0kW、1.5kW、3.0kW、5.0kW、7.5kW、11Kw：Built-in regenerative resistor
Dynamic Brake
Built-in
Control Mode
Including position control、velocity control、torque control、
position speed switching control、position torque switching control、
and speed torque switching control
Hardware Protection
Overvoltage、undervoltage、overcurrent、 drive overheating、encoder abnormality、etc
Software Protection
Memory failure、initialization failure、I/O allocation error、overspeed、overload、brake resistor overload、 position deviation excess、etc
Alarm Record
Record 14 faults and the latest 3 detailed alarm information
